Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4968

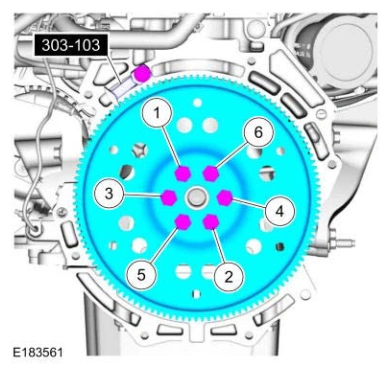

Engine — original illustration 1, reference 4968Original colors & callouts · Select to enlarge

INSTALLATION > ENGINE

Special Tool(s) / General Equipment

Engine — original illustration 2, reference 4968Original colors & callouts · Select to enlarge

300-OTC1819E

2, 200# Floor Crane, Fold Away

Engine — original illustration 3, reference 4968Original colors & callouts · Select to enlarge

303-050 (T70P-6000) Lifting Bracket, Engine

Magnetic Socket

Trolley Jack

Hose Clamp Remover/Installer

Wooden Block

Materials

Name	Specification
Motorcraft® Multi-Purpose Grease Spray XL-5-A	ESB-M1C93-B
Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) XO-5W30-QSP (U.S.)	WSS-M2C946-A

6-Speed Automatic Transmission - 6R80

1. Lubricate the torque converter pilot hub with multi-purpose grease.
