Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,965HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4965Original colors & callouts · Select to enlarge

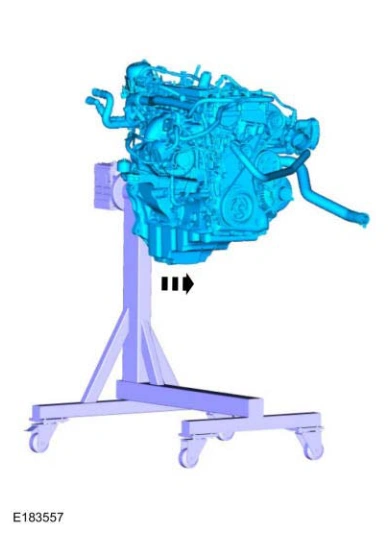

177. Remove engine from the mounting stand.

Use the General Equipment: Mounting Stand

Engine — original illustration 2, reference 4965Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

NOTE: Special bolts are used for installation. Do not use standard bolts.

178. Install the flywheel and the new bolts finger-tight.

Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Ford_Mustang_all_2015-2017.pdf · source reference 4965
