Tighten the bolts in sequence shown in illustration in 3 stages.

Torque:

Stage 1: 37 lb.ft (50 Nm)

Stage 2: 59 lb.ft (80 Nm)

Stage 3: 83 lb.ft (112 Nm)

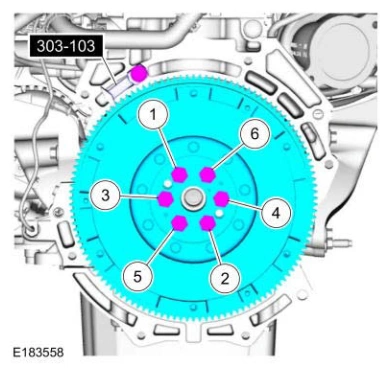

Engine — original illustration 1, reference 4966Original colors & callouts · Select to enlarge

179. Using the Clutch Alignment tool, position the clutch disc on the flywheel.

Use the General Equipment: Clutch Alignment Tool

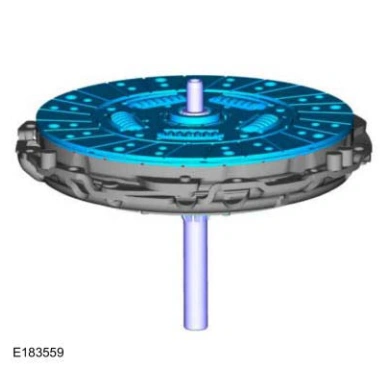

Engine — original illustration 2, reference 4966Original colors & callouts · Select to enlarge

NOTE: Special bolts are used for installation. Do not use standard bolts.

180. Using the Clutch Alignment tool, position the clutch pressure plate on the flywheel and install the clutch pressure plate bolts.
