Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,963HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4963Original colors & callouts · Select to enlarge

173. Install the LH engine mount bracket, stud bolt and the bolts.

Torque

: 41 lb.ft (55 Nm)

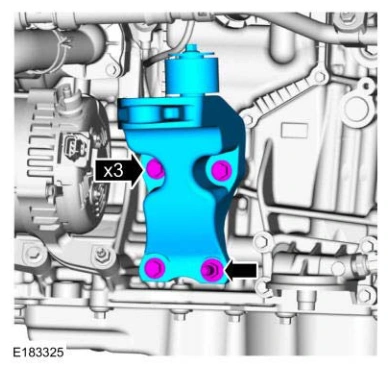

Engine — original illustration 2, reference 4963Original colors & callouts · Select to enlarge

174. Install the RH engine mount bracket, stud bolt and the bolts.

Torque

: 41 lb.ft (55 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4963

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
