Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,971HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 4971Original colors & callouts · Select to enlarge

6. Remove the jack and wooden block.

Use the General Equipment: Wooden Block

Use the General Equipment: Trolley Jack

Engine — original illustration 2, reference 4971Original colors & callouts · Select to enlarge

7. Remove Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

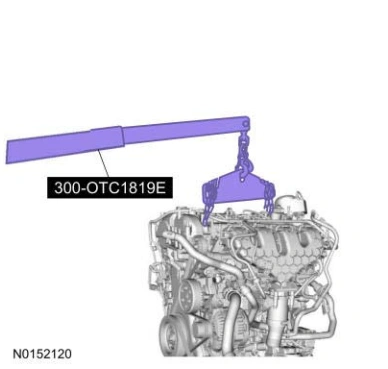

Engine — original illustration 3, reference 4971Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

Ford_Mustang_all_2015-2017.pdf · source reference 4971
