Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,943HTML edition
← Chapter contentsManual collection

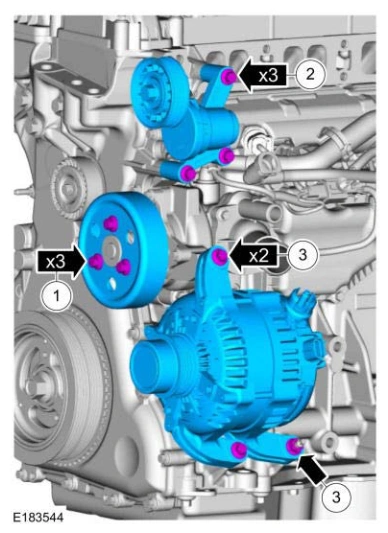

Engine — original illustration 1, reference 4943Original colors & callouts · Select to enlarge

133.

1. Install the tool and release the tension on the accessory drive belt tensioner.

2. Install the accessory drive belt.

3. Release the tool and remove.

Ford_Mustang_all_2015-2017.pdf · source reference 4943
