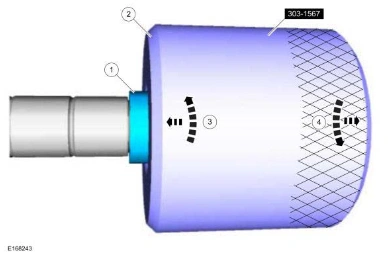

3. Once the special tool is installed, check and make sure the Teflon® seal is in the sizing portion of the special tool. After one minute, turn the special tool back 180 degrees and remove.
NOTE: Use fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the O-ring seals.
NOTE: Do not lubricate the new lower Teflon® fuel injector seals.
97.
1. Install the fuel injector seal.
2. Lubricate with clean engine oil and install the fuel injector O-ring seal.
Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
3. Install the fuel injector seal.
