Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4919

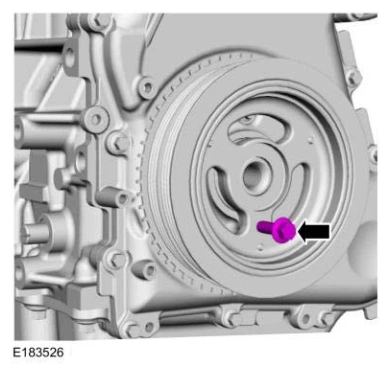

Engine — original illustration 1, reference 4919Original colors & callouts · Select to enlarge

NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Strap Wrench and the bolt should be installed using hand tools only.

83. Using a strap wrench, tighten the crankshaft pulley.

Use the General Equipment: Strap Wrench

Torque:

Stage 1: 74 lb.ft (100 Nm)

Stage 2: 90°

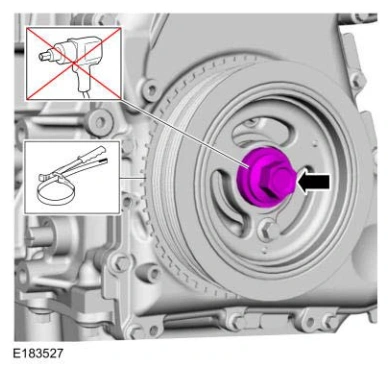

Engine — original illustration 2, reference 4919Original colors & callouts · Select to enlarge

84. Remove the M6 bolt.
