Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4916

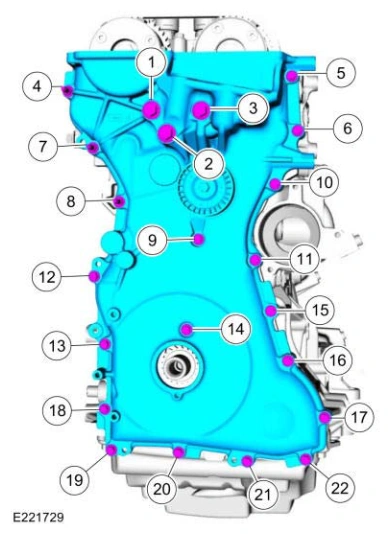

77. Install the engine front cover and the fasteners and tighten in the sequence shown in illustration.

Torque:

Bolts 1 - 3: 35 lb.ft (48 Nm)

Bolts 4 - 22: 89 lb.in (10 Nm)

Engine — original illustration 1, reference 4916Original colors & callouts · Select to enlarge

NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

78. Lubricate with clean engine oil and using the special tool, install the crankshaft front seal.

Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Material

: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
