NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the silicone sealant must be removed and the sealing area cleaned.

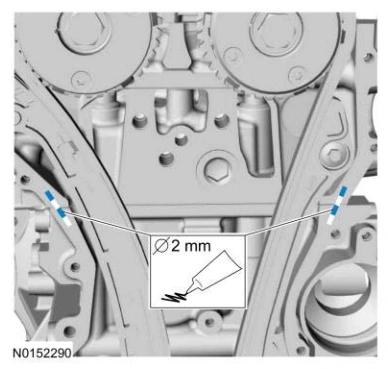

76. Apply beads of silicone sealant that are 2 mm (0.078 in) in diameter and 5 mm (0.19 in) in length across the cylinder head and cylinder block joint areas.
Material
: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
Material
: Motorcraft® Metal Surface Prep / ZC-31-B
