Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4912

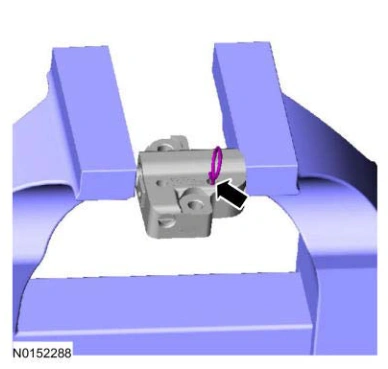

Engine — original illustration 1, reference 4912Original colors & callouts · Select to enlarge

NOTE: Do not remove the holding pin until the tensioner bolts are tightened.

71. Install the timing chain tensioner and the bolts.

Torque

: 89 lb.in (10 Nm)

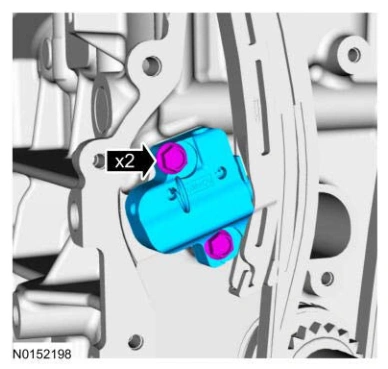

Engine — original illustration 2, reference 4912Original colors & callouts · Select to enlarge

72. Remove the holding pin.

Ford_Mustang_all_2015-2017.pdf · source reference 4912
