Engine — Engine - 2.3L EcoBoost (231kW & 314PS) · Reference 4909

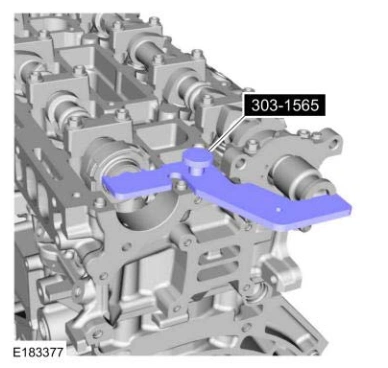

Engine — original illustration 1, reference 4909Original colors & callouts · Select to enlarge

NOTE: Do not tighten the VCT unit bolts at this time.

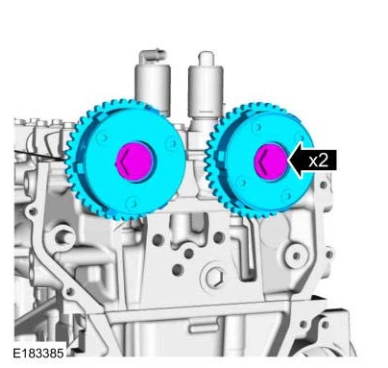

65. Install the VCT units and the bolts finger-tight.

Engine — original illustration 2, reference 4909Original colors & callouts · Select to enlarge

66. Install the tensioner arm, timing chain, timing chain guide and the bolts.

Torque

: 89 lb.in (10 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 4909
