61. Lubricate with clean engine oil and install the camshafts, caps and bolts.
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
Tighten the camshaft bearing cap bolts one turn at a time, until finger-tight.

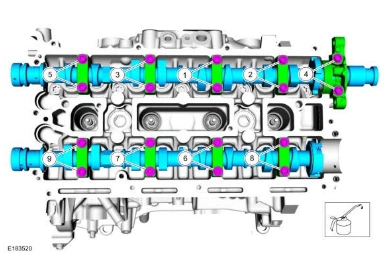

Tighten 2 turns at a time in the sequence shown in illustration in 2 stages.
Torque:
Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
62. Lubricate the camshaft journals with clean engine oil.
Material
: Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W30-QSP (U.S.) (WSS-M2C946-A)
Install the front camshaft bearing cap and the bolts and tighten in 2 stages.
Torque:
Stage 1: 62 lb.in (7 Nm)
Stage 2: 142 lb.in (16 Nm)
