Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,904HTML edition
← Chapter contentsManual collection

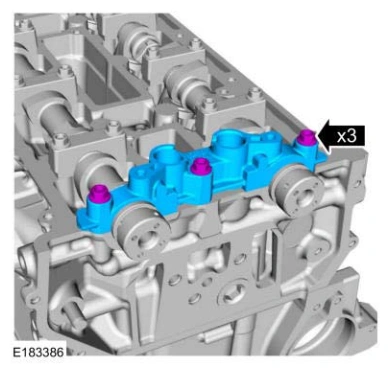

Engine — original illustration 1, reference 4904Original colors & callouts · Select to enlarge

NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

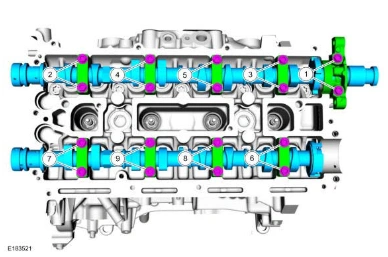

56. Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps and remove the bolts, caps and camshafts.

Engine — original illustration 2, reference 4904Original colors & callouts · Select to enlarge

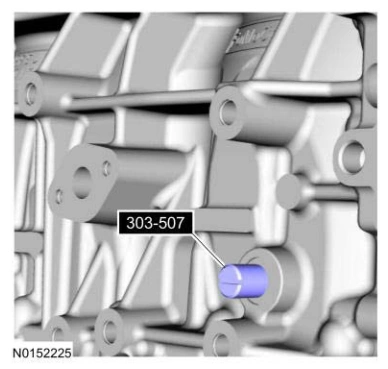

57. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Engine — original illustration 3, reference 4904Original colors & callouts · Select to enlarge
