Engine

Engine - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 4,911HTML edition
← Chapter contentsManual collection

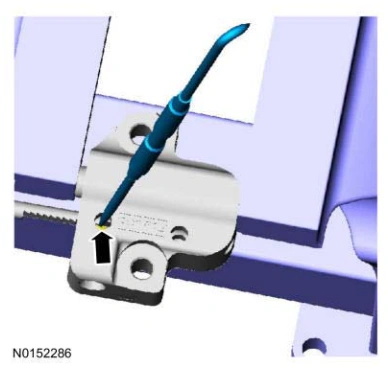

Using a small pick, push back and hold the ratchet mechanism.

Engine — original illustration 1, reference 4911Original colors & callouts · Select to enlarge

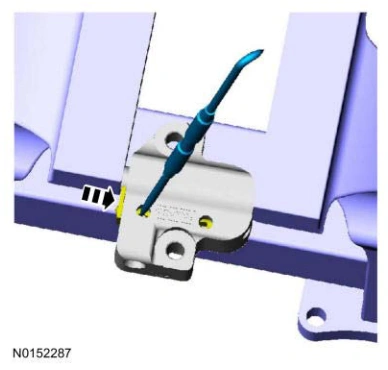

69. While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Engine — original illustration 2, reference 4911Original colors & callouts · Select to enlarge

70. Install a holding pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.
