DESCRIPTION AND OPERATION > ENGINE - OVERVIEW > OVERVIEW

The 3.7L (4V) is a V-6 engine with the following features:

Dual overhead camshafts

Four valves per cylinder

Sequential Multi-Port Fuel Injection (SFI)

Composite upper and lower intake manifold

Aluminum cylinder head

An aluminum, 60-degree V-cylinder block

Accessory dive belt driven coolant pump

Twin independent variable cam timing (Ti-VCT)

An electronic ignition system with 6 ignition coil-on-plugs

Engine Identification

For quick identification, refer to the safety certification decal.

The decal is located on the LH front door lock face panel.

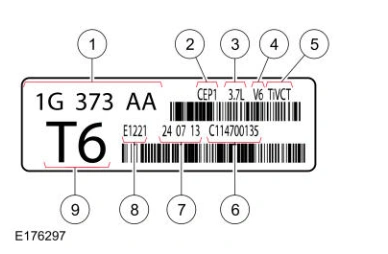

Engine Code Information Label

The engine code information label, located on the front side of the valve cover, contains the following:

Engine - Overview — original illustration 1, reference 4997Original colors & callouts · Select to enlarge

Item	Description
1	Engine part number
2	Engine plant (Cleveland)
