Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5269

Engine — original illustration 1, reference 5269Original colors & callouts · Select to enlarge

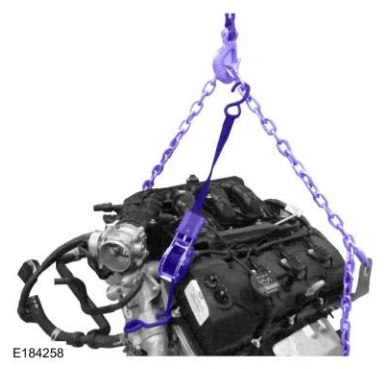

57. Using the floor crane, remove the engine.

Use the General Equipment: Floor Crane

Engine — original illustration 2, reference 5269Original colors & callouts · Select to enlarge

DISASSEMBLY > ENGINE

Special Tool(s) / General Equipment

Engine — original illustration 3, reference 5269Original colors & callouts · Select to enlarge	205-142 (T80T-4000-J) Installer, Differential Bearing Cone
Engine — original illustration 4, reference 5269Original colors & callouts · Select to enlarge	205-150 (T80T-4000-S) Installer, Spindle Bearing
