Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,266HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5266Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

50. Remove the LH side bellhousing bolts.

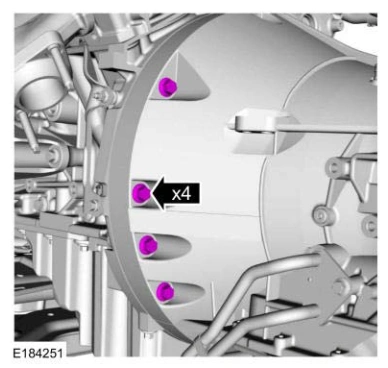

Engine — original illustration 2, reference 5266Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

51. Remove the RH side bellhousing bolts.
