Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,264HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5264Original colors & callouts · Select to enlarge

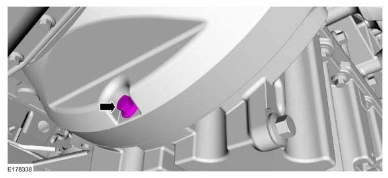

45. Remove the lower bellhousing bolt.

Engine — original illustration 2, reference 5264Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

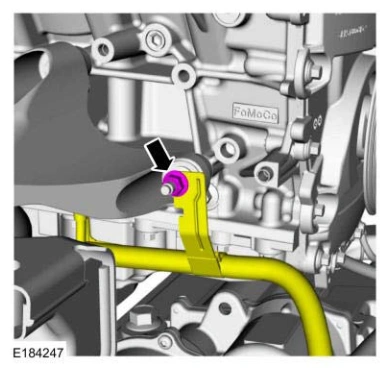

46. Remove the nut from the front of the RH engine mount bracket stud bolt and position the bracket for the wiring harness aside.

Engine — original illustration 3, reference 5264Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

47.
