Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5262

Engine — original illustration 1, reference 5262Original colors & callouts · Select to enlarge

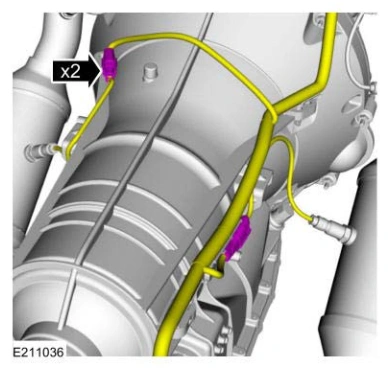

40. Detach the wiring harness retainer from the LH side of the transmission.

Engine — original illustration 2, reference 5262Original colors & callouts · Select to enlarge

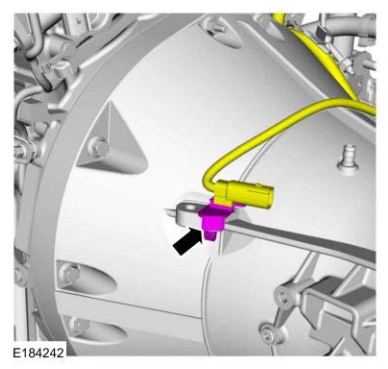

41.

1. Rotate the transmission electrical connector.

2. Pull the transmission electrical connector out to disconnect.

3. Detach the wiring harness retainers and position the aside.
