Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5261

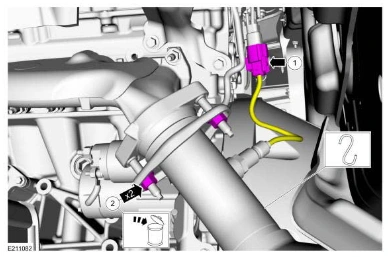

1. Disconnect the LH HO2S electrical connector.

2. Support the catalytic converter and remove and discard the nuts.

Engine — original illustration 1, reference 5261Original colors & callouts · Select to enlarge

38.

NOTE: Make sure that the mating faces are clean and free of foreign material.

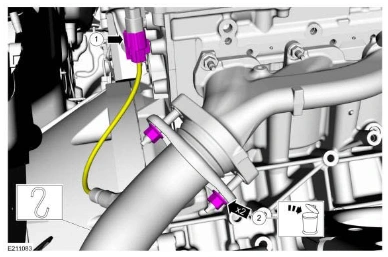

1. Disconnect the RH HO2S electrical connector.

2. Support the catalytic converter and remove and discard the nuts.

Engine — original illustration 2, reference 5261Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

39. Disconnect the catalyst monitor sensors.
