Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5258

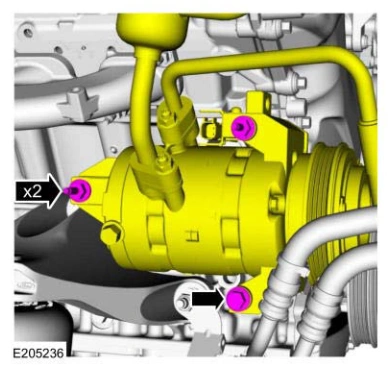

NOTE: The stud bolts and bolt will stay with the A/C compressor.

28. Loosen the stud bolts, bolt and position the A/C compressor aside.

Engine — original illustration 1, reference 5258Original colors & callouts · Select to enlarge

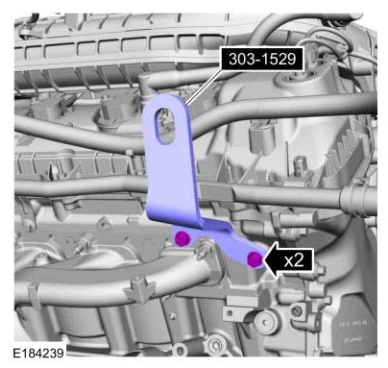

29. Install Special Service Tool: 303-1529 Lift Eye, Engine.

Engine — original illustration 2, reference 5258Original colors & callouts · Select to enlarge

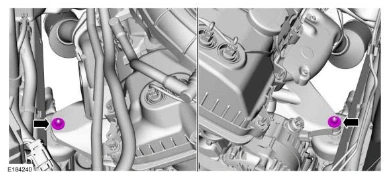

30. Remove the RH and LH engine mount bracket nuts.

Engine — original illustration 3, reference 5258Original colors & callouts · Select to enlarge
