Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,257HTML edition
← Chapter contentsManual collection

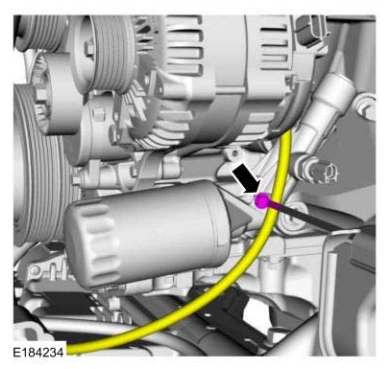

Engine — original illustration 1, reference 5257Original colors & callouts · Select to enlarge

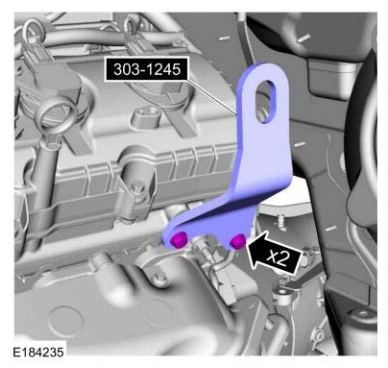

26. Install Special Service Tool: 303-1245 Engine Lift Eye.

Engine — original illustration 2, reference 5257Original colors & callouts · Select to enlarge

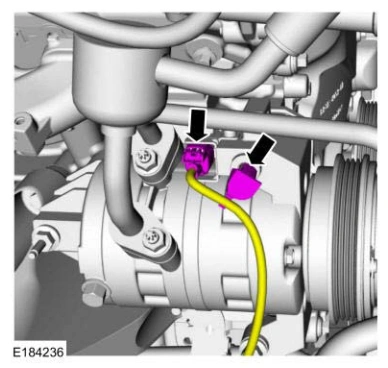

27. Disconnect the A/C compressor electrical connector and the wire harness retainer.

Engine — original illustration 3, reference 5257Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5257
