Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5256

Engine — original illustration 1, reference 5256Original colors & callouts · Select to enlarge

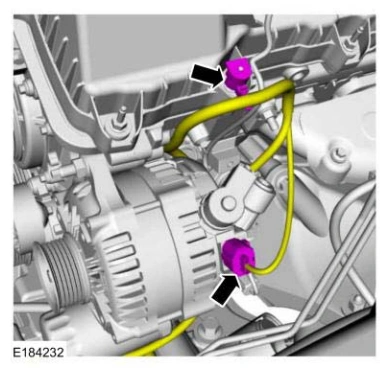

24. Position the protective cover aside.

Remove the nut and the generator B+ cable.

Engine — original illustration 2, reference 5256Original colors & callouts · Select to enlarge

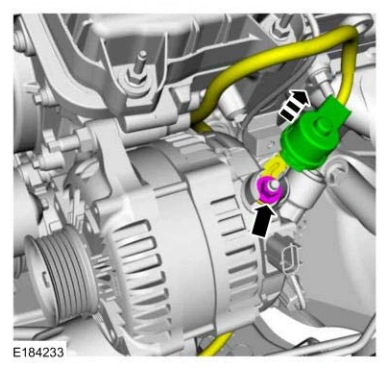

25. Detach the generator wiring harness retainer from the oil filter adapter.
