Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,253HTML edition
← Chapter contentsManual collection

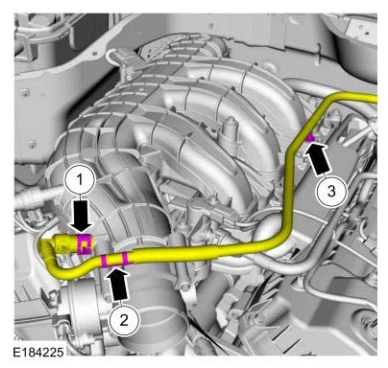

Engine — original illustration 1, reference 5253Original colors & callouts · Select to enlarge

17. Disconnect the fuel tube and EVAP purge valve quick release coupling. Refer to: QUICK RELEASE COUPLING .

Remove the retainer from the LH valve cover.

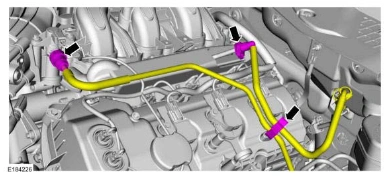

Engine — original illustration 2, reference 5253Original colors & callouts · Select to enlarge

18. Remove the nut and the ground strap from the cowl.

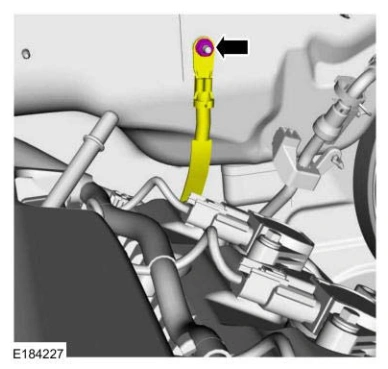

Engine — original illustration 3, reference 5253Original colors & callouts · Select to enlarge

19.

Ford_Mustang_all_2015-2017.pdf · source reference 5253

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
