Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,251HTML edition
← Chapter contentsManual collection

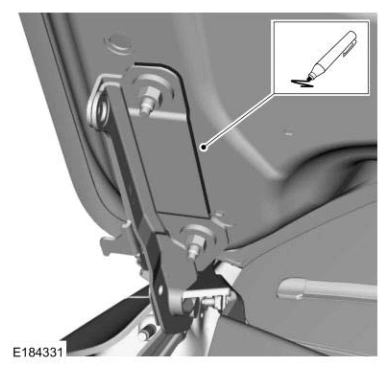

Engine — original illustration 1, reference 5251Original colors & callouts · Select to enlarge

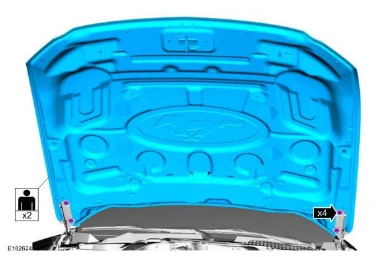

12. Remove the nuts and the hood.

Engine — original illustration 2, reference 5251Original colors & callouts · Select to enlarge

13. Remove the following items:

Refer to: DEGAS BOTTLE .

Refer to: AIR CLEANER OUTLET PIPE .

Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

14. Disconnect the upper and lower radiator hoses from the thermostat housing.

Use the General Equipment: Hose Clamp Remover/Installer
