Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5250

Engine — original illustration 1, reference 5250Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

8. Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

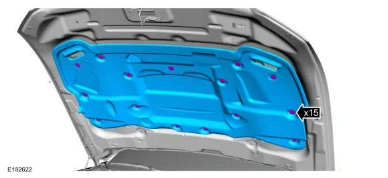

9. Remove the pin-type retainers and the hood insulation.

Engine — original illustration 2, reference 5250Original colors & callouts · Select to enlarge

10.

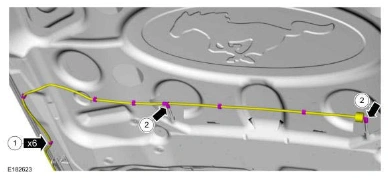

1. Detach the windshield washer hose retainers.

2. Disconnect the windshield washer hose couplings. Refer to: Washer Hose Coupling .

Engine — original illustration 3, reference 5250Original colors & callouts · Select to enlarge

NOTE: RH side shown in illustration, LH similar.

11. Index-mark the hood hinges location to aid in hood installation.
