Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,252HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5252Original colors & callouts · Select to enlarge

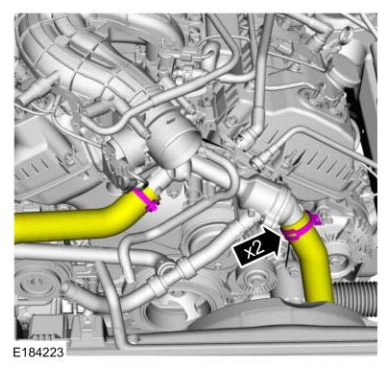

15. Remove the crankcase vent tube.

Engine — original illustration 2, reference 5252Original colors & callouts · Select to enlarge

16.

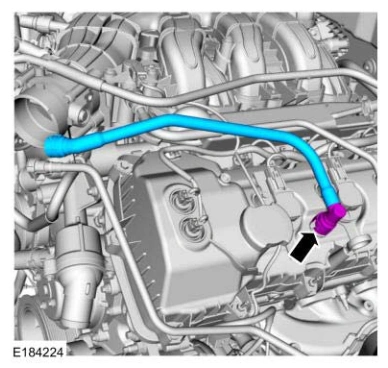

1. Disconnect the vacuum hose from the upper intake manifold.

Use the General Equipment: Hose Clamp Remover/Installer

2. Detach the vacuum hose retainer from the throttle body.

3. Detach the vacuum hose retainer from the intake manifold.

Ford_Mustang_all_2015-2017.pdf · source reference 5252
