Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5255

Engine — original illustration 1, reference 5255Original colors & callouts · Select to enlarge

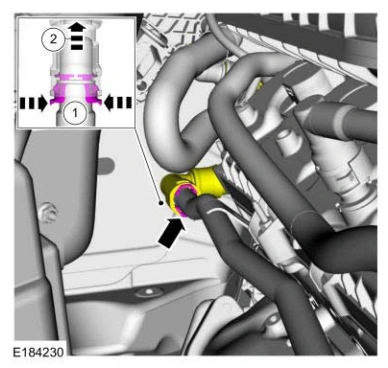

22. Pinch the tabs and disconnect the heater hose from the back of the lower intake manifold.

Engine — original illustration 2, reference 5255Original colors & callouts · Select to enlarge

23. Detach the wire harness retainer from the valve cover stud bolt.

Disconnect the generator electrical connector.
