Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,254HTML edition
← Chapter contentsManual collection

Detach and disconnect the engine harness electrical connector.

Detach the wiring harness retainer.

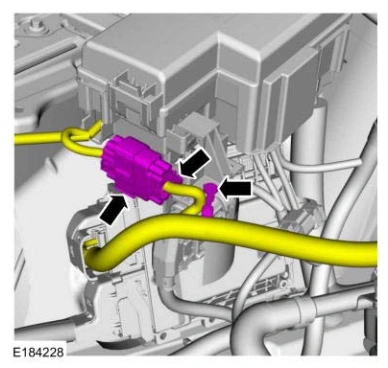

Engine — original illustration 1, reference 5254Original colors & callouts · Select to enlarge

20. Disconnect the upper PCM electrical connector.

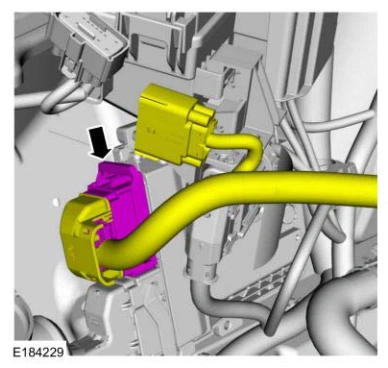

Engine — original illustration 2, reference 5254Original colors & callouts · Select to enlarge

21. Pinch the tabs and disconnect the heater hose from the coolant tube.

Ford_Mustang_all_2015-2017.pdf · source reference 5254
