Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,259HTML edition
← Chapter contentsManual collection

31. Remove the front wheels and tires. Refer to: Wheel and Tire .

NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

32.

1. Remove the bolts and the underbody shield.

2. Remove the bolts and the subframe bracket and underbody shield assembly.

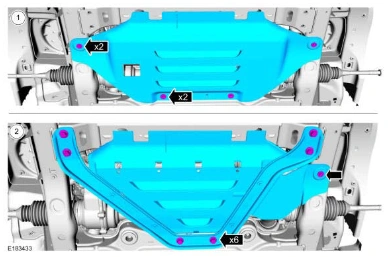

Engine — original illustration 1, reference 5259Original colors & callouts · Select to enlarge

33. Drain the engine oil and install drain plug.

Use the General Equipment: Oil Drain Equipment

Torque

: 20 lb.ft (27 Nm)

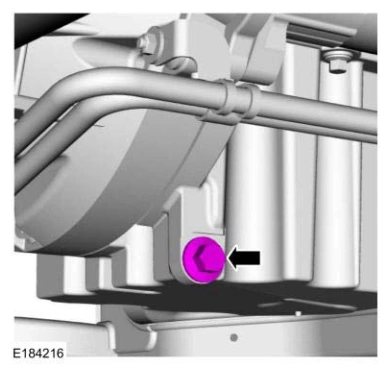

Engine — original illustration 2, reference 5259Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5259
