Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5260

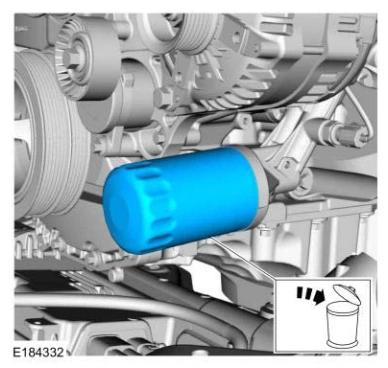

34. Remove and discard the engine oil filter.

Use the General Equipment: Oil Drain Equipment

Engine — original illustration 1, reference 5260Original colors & callouts · Select to enlarge

35. Remove the starter motor. Refer to: STARTER MOTOR .

NOTE: Automatic transmission shown in illustration, manual transmission similar.

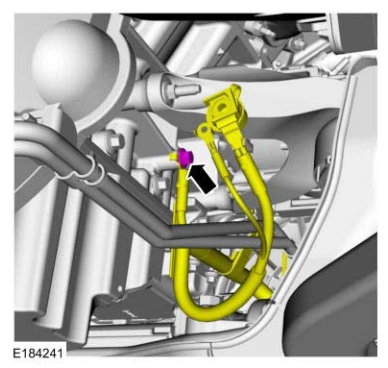

36. Remove the bolt and ground wire from the RH side of the engine.

Engine — original illustration 2, reference 5260Original colors & callouts · Select to enlarge

37.

NOTE: Make sure that the mating faces are clean and free of foreign material.
