Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,263HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5263Original colors & callouts · Select to enlarge

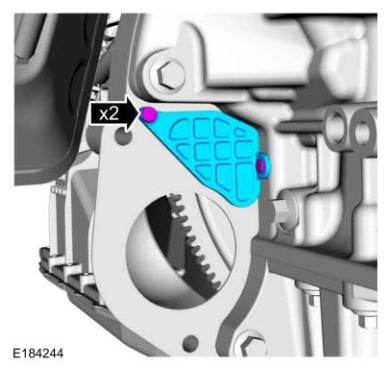

42. Remove the retainers and the access cover.

Engine — original illustration 2, reference 5263Original colors & callouts · Select to enlarge

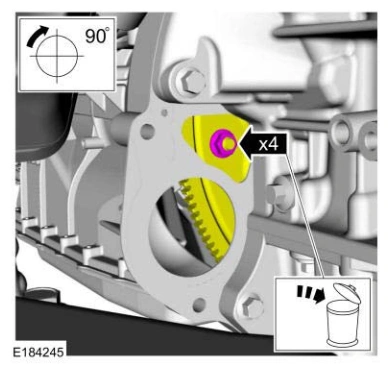

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

43. Remove and discard the torque converter nuts.

Engine — original illustration 3, reference 5263Original colors & callouts · Select to enlarge

44. Remove the nut from the front of the RH engine mount bracket stud bolt and position the brackets for the transmission cooling tubes and wiring harness aside.
