Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5265

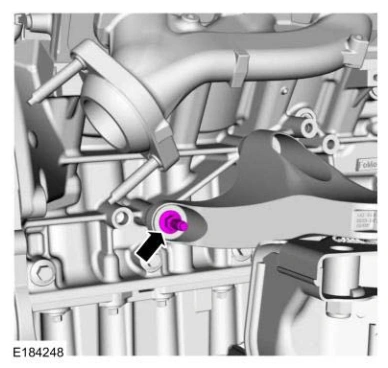

Remove the rear stud bolt from the RH engine mount bracket.

Engine — original illustration 1, reference 5265Original colors & callouts · Select to enlarge

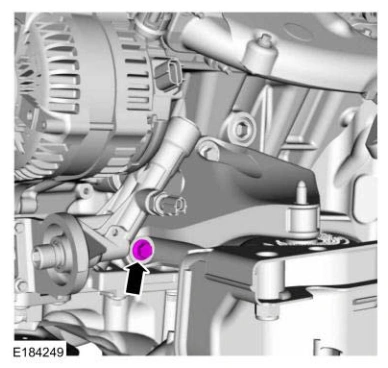

48. Remove the front bolt from the LH engine mount bracket.

Engine — original illustration 2, reference 5265Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

49. Remove the upper bellhousing bolts.
