Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5268

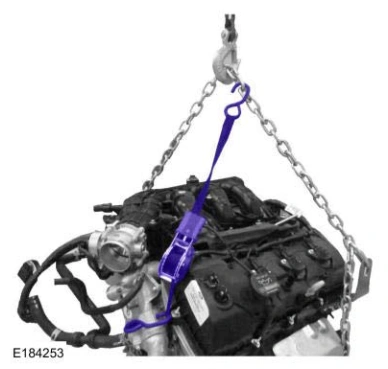

Engine — original illustration 1, reference 5268Original colors & callouts · Select to enlarge

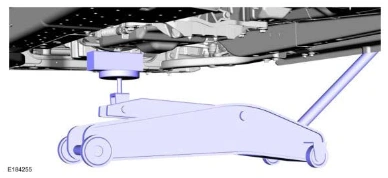

54. Install a jack and wooden block under the transmission bellhousing to support the transmission.

Use the General Equipment: Wooden Block

Use the General Equipment: Trolley Jack

Engine — original illustration 2, reference 5268Original colors & callouts · Select to enlarge

55. Remove the bolts and the LH engine mount bracket.

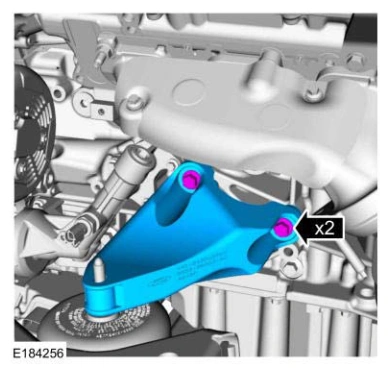

Engine — original illustration 3, reference 5268Original colors & callouts · Select to enlarge

56. Remove the bolts and the RH engine mount bracket.
