Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,267HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5267Original colors & callouts · Select to enlarge

52. Install the engine floor crane.

Use the General Equipment: Floor Crane

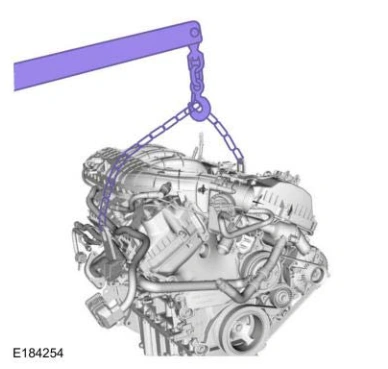

Engine — original illustration 2, reference 5267Original colors & callouts · Select to enlarge

53. Install a ratchet strap from the front of engine to the chain to keep the engine level.

Ford_Mustang_all_2015-2017.pdf · source reference 5267
