REMOVAL AND INSTALLATION > CATALYTIC CONVERTER > REMOVAL

NOTE: If the catalytic converter is not being replaced, the HO2S and the catalyst monitor sensor do not need to be removed from the catalytic converter. Disconnecting the electrical connectors is still necessary.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Clean all exhaust connections before reassembly.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

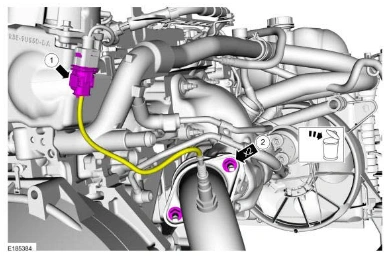

1. Disconnect the HO2S electrical connector.

2. Remove and discard the nuts.

Torque

: 30 lb.ft (40 Nm)

Catalytic Converter — original illustration 1, reference 6064Original colors & callouts · Select to enlarge

3. Disconnect the catalyst monitor sensor electrical connector.
