Muffler And Tailpipe — Removal

Exhaust System - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,066HTML edition
← Chapter contentsManual collection

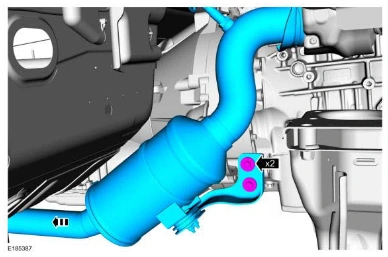

Muffler And Tailpipe — original illustration 1, reference 6066Original colors & callouts · Select to enlarge

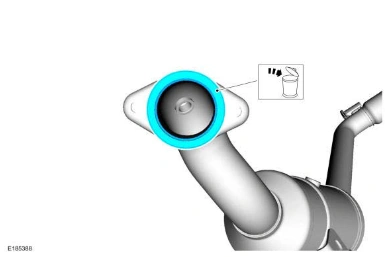

6. Remove and discard the gasket.

Muffler And Tailpipe — original illustration 2, reference 6066Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CATALYTIC CONVERTER > INSTALLATION

1. To install, reverse the removal procedure.

2. Check the exhaust system for leaks.

REMOVAL AND INSTALLATION > MUFFLER AND TAILPIPE

Materials

Name

Specification

Threadlock and Sealer TA-25-B

-

REMOVAL AND INSTALLATION > MUFFLER AND TAILPIPE > REMOVAL
