NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.
NOTE: Do not use oil or grease-based lubricants on the isolators. They may cause deterioration of the rubber.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: Clean all exhaust connections before reassembly.
1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
2.

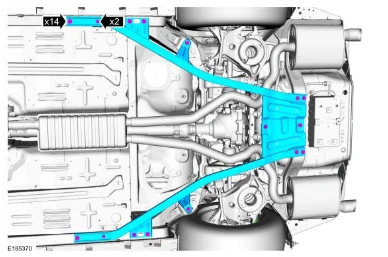

1. Convertible top vehicles only, remove the retainers and the brace.
Torque
: 46 lb.ft (63 Nm)
2. During assembly, clean the retainers and apply the thread lock.
Material
: Threadlock and Sealer / TA-25-B
3. Loosen the clamp and separate the muffler and tailpipe from the catalytic converter.
