Catalytic Converter — Removal — Exhaust System - 2.3L EcoBoost (231kW & 314PS) · Reference 6065

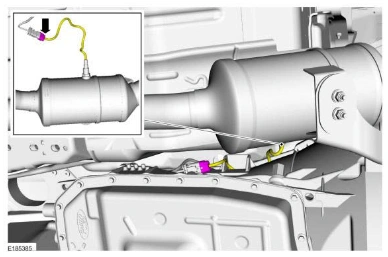

Catalytic Converter — original illustration 1, reference 6065Original colors & callouts · Select to enlarge

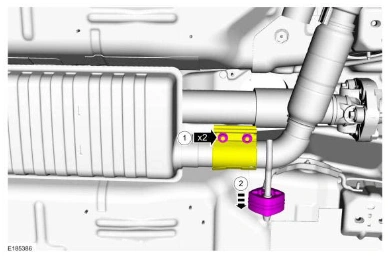

1. Loosen the clamp and release the tab and slide the clamp back on the muffler. Separate the muffler and tailpipe from the catalytic converter.

Torque

: 35 lb.ft (48 Nm)

2. Detach the exhaust isolator.

Catalytic Converter — original illustration 2, reference 6065Original colors & callouts · Select to enlarge

5. Remove the bolts and the catalytic converter.

Torque

: 18 lb.ft (25 Nm)

Ford_Mustang_all_2015-2017.pdf · source reference 6065
