Catalytic Converter RH — Removal — Exhaust System - 3.7L Duratec (227kW & 301PS) · Reference 6076

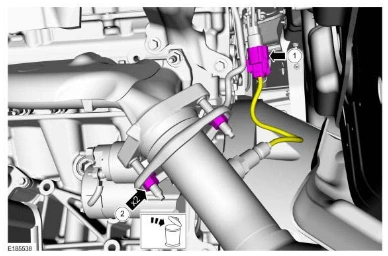

2. Remove and discard the nuts.

Torque

: 30 lb.ft (40 Nm)

Catalytic Converter RH — original illustration 1, reference 6076Original colors & callouts · Select to enlarge

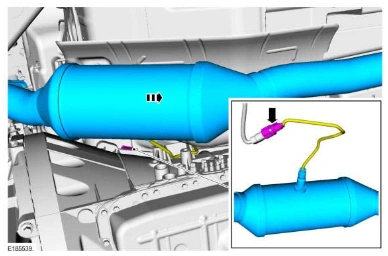

4. Disconnect the catalyst monitor sensor electrical connector and remove the catalytic convertor.

Catalytic Converter RH — original illustration 2, reference 6076Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CATALYTIC CONVERTER LH > INSTALLATION

1. To install, reverse the removal procedure.

2. Check the exhaust system for leaks.

REMOVAL AND INSTALLATION > CATALYTIC CONVERTER RH > REMOVAL

NOTE: If the catalytic converter is not being replaced, the HO2S and the catalyst monitor sensor do not need to be removed from the catalytic converter. Disconnecting the electrical
