Muffler And Tailpipe — Removal — Exhaust System - 3.7L Duratec (227kW & 301PS) · Reference 6079

NOTE: Do not excessively bend, twist or allow the exhaust to hang from the flexible joint or damage to the exhaust system may occur.

NOTE: Do not use oil or grease-based lubricants on the isolators. They may cause deterioration of the rubber.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Clean all exhaust connections before reassembly.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

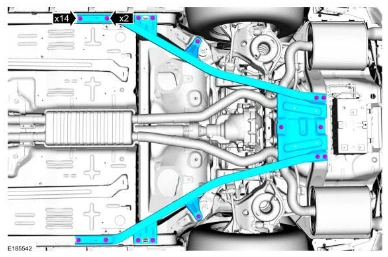

1. Convertible top vehicles only, remove the retainers and the brace.

Torque

: 46 lb.ft (63 Nm)

2. During assembly, clean the retainers and apply the thread lock.

Material

: Threadlock and Sealer / TA-25-B

Muffler And Tailpipe — original illustration 1, reference 6079Original colors & callouts · Select to enlarge

3. Loosen the clamps and separate the muffler and tailpipe from the catalytic converters.
