Muffler And Tailpipe — Removal — Exhaust System - 3.7L Duratec (227kW & 301PS) · Reference 6078

Muffler And Tailpipe — original illustration 1, reference 6078Original colors & callouts · Select to enlarge

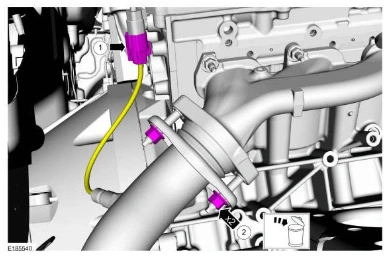

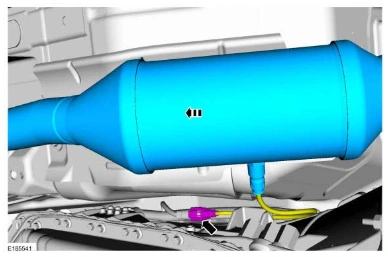

4. Disconnect the catalyst monitor sensor electrical connector and remove the catalytic convertor.

Muffler And Tailpipe — original illustration 2, reference 6078Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > CATALYTIC CONVERTER RH > INSTALLATION

1. To install, reverse the removal procedure.

2. Check the exhaust system for leaks.

REMOVAL AND INSTALLATION > MUFFLER AND TAILPIPE

Materials

Name	Specification
Threadlock and Sealer TA-25-B	-

REMOVAL AND INSTALLATION > MUFFLER AND TAILPIPE > REMOVAL

Ford_Mustang_all_2015-2017.pdf · source reference 6078
