NOTE: Removal steps in this procedure may contain installation details.
NOTE: Clean all exhaust connections before reassembly.
1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

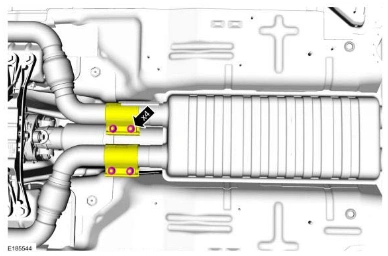

2. Loosen the clamps, release the tab and slide the clamps back on the muffler. Separate the muffler and tailpipe from the catalytic converters.
Torque
: 35 lb.ft (48 Nm)
3.
1. Disconnect the HO2S electrical connector.
2. Remove and discard the nuts.
Torque
: 30 lb.ft (40 Nm)
