Muffler And Tailpipe — Installation — Exhaust System - 3.7L Duratec (227kW & 301PS) · Reference 6080

Torque

: 35 lb.ft (48 Nm)

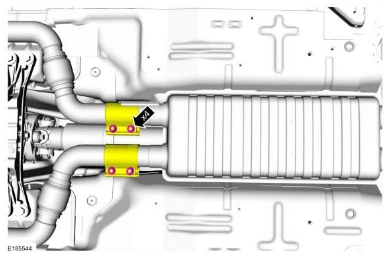

Muffler And Tailpipe — original illustration 1, reference 6080Original colors & callouts · Select to enlarge

1. Remove the LH and RH rear exhaust hanger isolator bracket bolts from the rear subframe.

Torque

: 18 lb.ft (25 Nm)

2. Unhook the rear exhaust hanger isolators and remove the muffler and tailpipe.

Muffler And Tailpipe — original illustration 2, reference 6080Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > MUFFLER AND TAILPIPE > INSTALLATION

1. To install, reverse the removal procedure.

2. Check the exhaust system for leaks.
