Fuel Level Sensor

Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS)

Source configuration appliesSource reference 6,179HTML edition
← Chapter contentsManual collection

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .

2. Disconnect the electrical connector.

Release the locking tab.

Remove the fuel level sender.

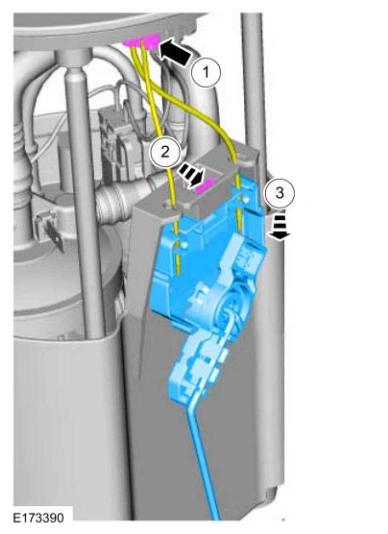

Fuel Level Sensor — original illustration 1, reference 6179Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FUEL LEVEL SENDER > INSTALLATION

1. To install, reverse the removal procedure.

REMOVAL AND INSTALLATION > FUEL LEVEL SENSOR

Fuel Level Sensor
