Fuel Level Sensor — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6182

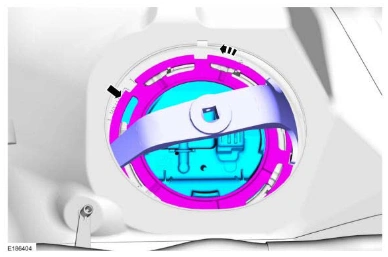

Fuel Level Sensor — original illustration 1, reference 6182Original colors & callouts · Select to enlarge

NOTE: The Fuel Pump and Sender Unit must be handled carefully to avoid damage to the float arm.

9. Position the Fuel Pump and Sender Unit aside. Using the Fuel Storage Tanker, completely drain the remaining fuel from the LH saddle of the fuel tank.

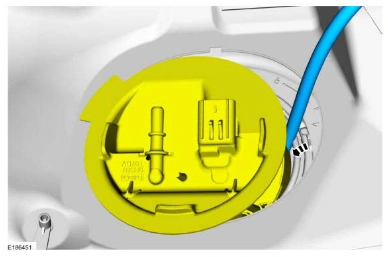

Fuel Level Sensor — original illustration 2, reference 6182Original colors & callouts · Select to enlarge

NOTE: Inspect the surfaces of the Fuel Pump and Sender Unit flange and fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new Fuel Pump and Sender Unit or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

10. Remove and discard the O-ring seal.

11. Remove the Fuel Level Sensor access cover and position aside.
