Fuel Level Sensor — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6183

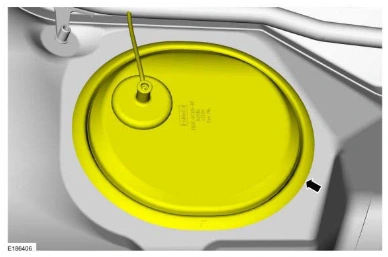

Fuel Level Sensor — original illustration 1, reference 6183Original colors & callouts · Select to enlarge

NOTE: Clean the fuel level sensor connections, flange surfaces and the immediate surrounding area of any dirt or foreign material.

12. Disconnect the electrical connector.

Fuel Level Sensor — original illustration 2, reference 6183Original colors & callouts · Select to enlarge

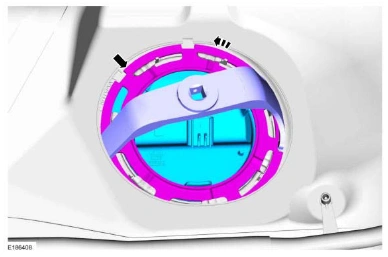

NOTE: Carefully install the Fuel Tank Sender Unit Socket to avoid damage to the fuel level sensor when removing the lock ring.

13. Using the special tool remove the Fuel Level Sensor lock ring.

Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Fuel Level Sensor — original illustration 3, reference 6183Original colors & callouts · Select to enlarge

14. Disconnect the internal fuel tube-to-Fuel Level Sensor quick connect coupling. Refer to: QUICK
