Fuel Lines — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6185

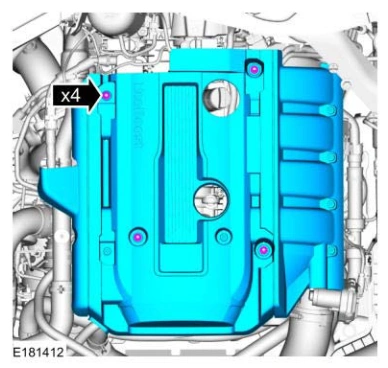

Fuel Lines — original illustration 1, reference 6185Original colors & callouts · Select to enlarge

3. Disconnect the fuel line-to-fuel rail spring lock coupling. Refer to: SPRING LOCK COUPLINGS -

2.3L EcoBoost (231kW/314PS).

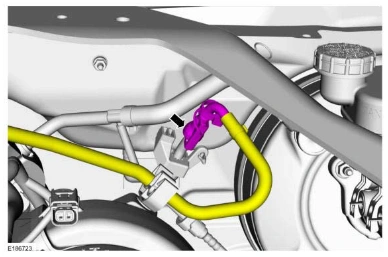

Fuel Lines — original illustration 2, reference 6185Original colors & callouts · Select to enlarge

4. Remove the nuts and the heat shield.

Torque

: 71 lb.in (8 Nm)

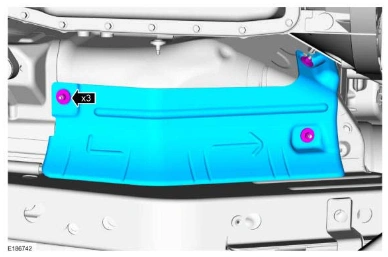

Fuel Lines — original illustration 3, reference 6185Original colors & callouts · Select to enlarge

5. Release the fuel line from the retainers.
