Fuel Pump And Sender Unit — Removal — Fuel Tank And Lines - 2.3L EcoBoost (231kW & 314PS) · Reference 6188

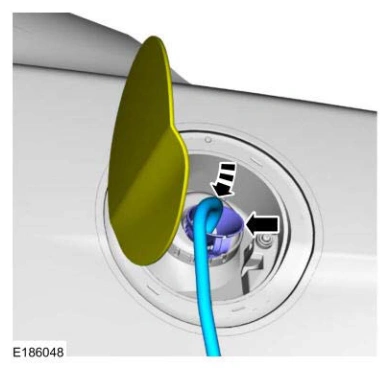

Fuel Pump And Sender Unit — original illustration 1, reference 6188Original colors & callouts · Select to enlarge

NOTE: This step is to remove approximately 3/16 tank of the fuel (3 gallons) from a completely full fuel tank and the majority of any residual fuel in the fuel tank filler pipe, lowering the fuel level below the Fuel Pump and Sender Unit mounting flange.

4. Attach the Fuel Storage Tanker to the fuel drain tube and remove as much fuel as possible from the tank.

Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.

5. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

6. Remove the Fuel Pump and Sender Unit access cover and position aside.

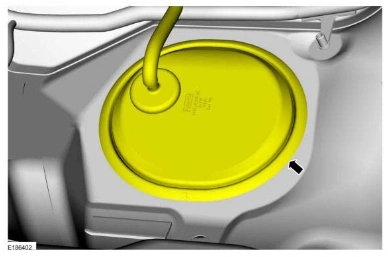

Fuel Pump And Sender Unit — original illustration 2, reference 6188Original colors & callouts · Select to enlarge

7. Disconnect electrical connector and fuel tube quick release coupling. Refer to: QUICK RELEASE COUPLING - 2.3L EcoBoost (231kW/314PS).
